Industrial High-Voltage Power

107kWh C&I Outdoor All-in-One ESS Cabinet with Integrated HVAC & Multi-Tier BMS

An all-in-one outdoor commercial and industrial energy storage cabinet featuring 384V 280Ah (107.52kWh) high-voltage LiFePO4 battery configuration, door-mounted industrial HVAC thermal management, aerosol fire suppression interface, and multi-tier BMS protection for factory peak shaving, microgrids, and commercial backup power.

384V High-Voltage280Ah107.52kWhIP54 Outdoor
Request a Quote Get the datasheet

Certification support

UN38.3MSDSCE PlanningIEC 62619 Review

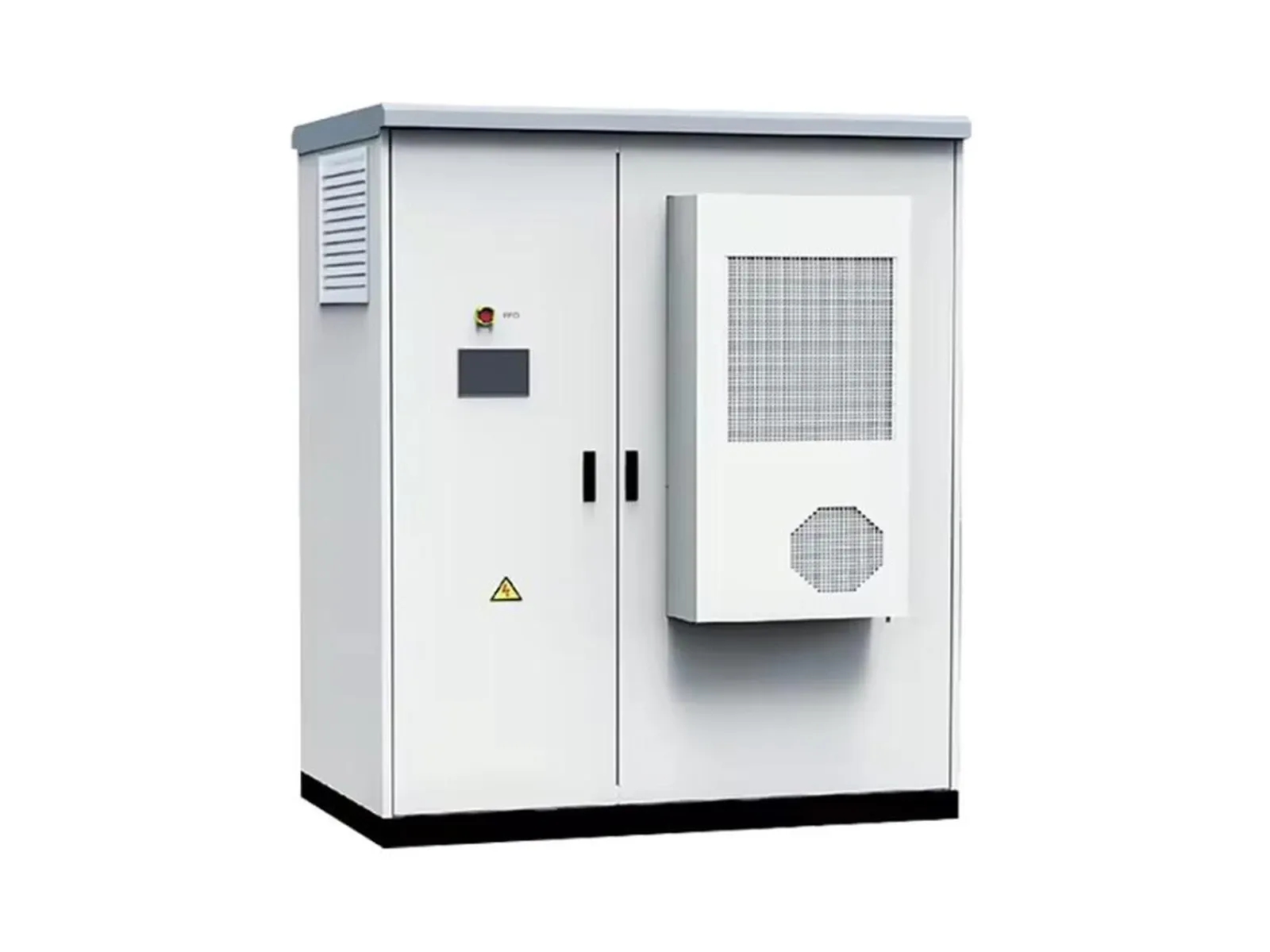

107kWh C&I outdoor all-in-one ESS cabinet with door-mounted industrial air conditioner, robust weather-resistant enclosure, and integrated control panel

Product image set

107kWh C&I outdoor all-in-one ESS cabinet with door-mounted industrial air conditioner, robust weather-resistant enclosure, and integrated control panel 1
Cabinet internal power and communication distribution panel with DC breakers, isolator, and telemetry terminal blocks 2
Industrial multi-tier BMS master-slave control unit with thermal sensor harnesses and telemetry wiring 3
Semi-finished high-voltage LiFePO4 module packs with precision welded busbars on assembly line 4

Quick shortlist specs

Full specs are confirmed in the technical table

Voltage
384V nominal (300V-438V operating)
Capacity
280Ah
Chemistry
LiFePO4 (120S1P)
Energy
107.52kWh
Max discharge
100A continuous (0.5C design)
Cycle life
4,000+ to 6,000 cycles reference (0.5C/0.5C, 25°C)
Dimensions
860 × 650 × 2300 mm (W×D×H)

Product overview

Product description

An all-in-one outdoor commercial and industrial energy storage cabinet featuring 384V 280Ah (107.52kWh) high-voltage LiFePO4 battery configuration, door-mounted industrial HVAC thermal management, aerosol fire suppression interface, and multi-tier BMS protection for factory peak shaving, microgrids, and commercial backup power.

107kWh C&I outdoor all-in-one ESS cabinet with door-mounted industrial air conditioner, robust weather-resistant enclosure, and integrated control panel

Get the technical datasheet & drawing by email

107kWh C&I Outdoor ESS Cabinet

Leave your email and we will send the datasheet, drawings, and matching advice to your inbox — or submit a detailed RFQ if you want engineering input.

Need engineering input? Submit a detailed RFQ →

Product category path

Continue through the product category path.

Product category

Industrial High-Voltage and Specialty Safety Power Systems

High-voltage, explosion-proof, high-power, and high-safety battery systems for industrial equipment—covering 320V / 400V+ specialty power, insulation, interlock, and enclosure safety.

View category products →

Accessories

Capacity upsell & related products

Door-mounted industrial HVAC climate control unit
Aerosol fire suppression system trigger integration
High-voltage DC isolation breaker assembly
Internal RS485 / CAN communication gateway
Industrial high-voltage specialty battery system for about 320V and 400V+ restricted-use projects, with rugged stacked enclosure and front connector bays
About 320V / 400V+High powerSpecialty / restricted-use

Industrial High-Voltage Specialty Battery System

High-voltage battery system architecture for restricted industrial projects—about 320V-class explosion-proof equipment power cabins and about 400V+ high-power station systems—covering insulation, HV interlock, enclosure, BMS protection, and documentation review. Not forklift / AGV selection, not 24V–96V industrial module delivery, and not a generic high-safety mobile PACK page.

Voltage
About 320V / 400V+ review
Capability
High-power station class, project-confirmed
Chemistry
Li-ion / LiFePO4 by safety target
Request Specs & Price Technical Details
High-safety custom battery pack for rugged equipment projects, with black enclosure, communication ports, status indicators, and high-current terminals
High safetyAbuse-test planningCustom PACK

High-Safety Custom Battery Pack

Custom battery pack architecture for rugged and safety-critical equipment, reviewed around materials, structure, BMS protection, abuse-test targets, and enclosure planning—not a 320V / 400V+ specialty cabin catalog, not bare LFP large-cell shopping, and not Wh/kg-first cell screening.

Voltage
Project specific
Capability
Load profile matched
Chemistry
High-safety lithium / LiFePO4 by project
Request Specs & Price Technical Details
48V 200Ah server rack LiFePO4 battery system for high-temperature tolerant, long-life commercial ESS and solar storage projects, with multi-unit rack stack, terminals, and communication ports
48V / 51.2V200Ah10.24kWh

48V 200Ah Rack Battery

Higher-capacity 48V / 51.2V (16S) rack LiFePO4 battery for longer backup runtime and expanded solar storage—the 200Ah / 10.24kWh rack platform.

Voltage
51.2V nominal (48V platform)
Capacity
200Ah
Chemistry
LiFePO4
Request Specs & Price Technical Details

Product FAQ

107kWh C&I Outdoor ESS Cabinet

How does the door-mounted industrial HVAC protect the battery bank?

Outdoor high-capacity ESS cabinets experience severe solar irradiance and thermal cycling. The door-mounted HVAC system maintains internal cell temperatures in the optimal 20°C-28°C band and controls humidity, preventing condensation and avoiding accelerated cell degradation in hot summers or cold winters.

Can multiple 107kWh outdoor cabinets be paralleled for MW-scale systems?

Yes. Multiple cabinets can be paralleled on the DC bus into multi-channel PCS inputs, or integrated on the AC side via distributed PCS units coordinated by an overarching Plant EMS. Engineering reviews confirm DC fuse coordination, fault current limits, and communication bus topography.

What PCS and inverter telemetry protocols are supported by the 107kWh cabinet?

The master BMS features standard RS485 and CAN interfaces running Modbus RTU, Modbus TCP, and CAN 2.0B protocols. Compatible telemetry registers can be mapped to PCS units during the pre-engineering review phase.
