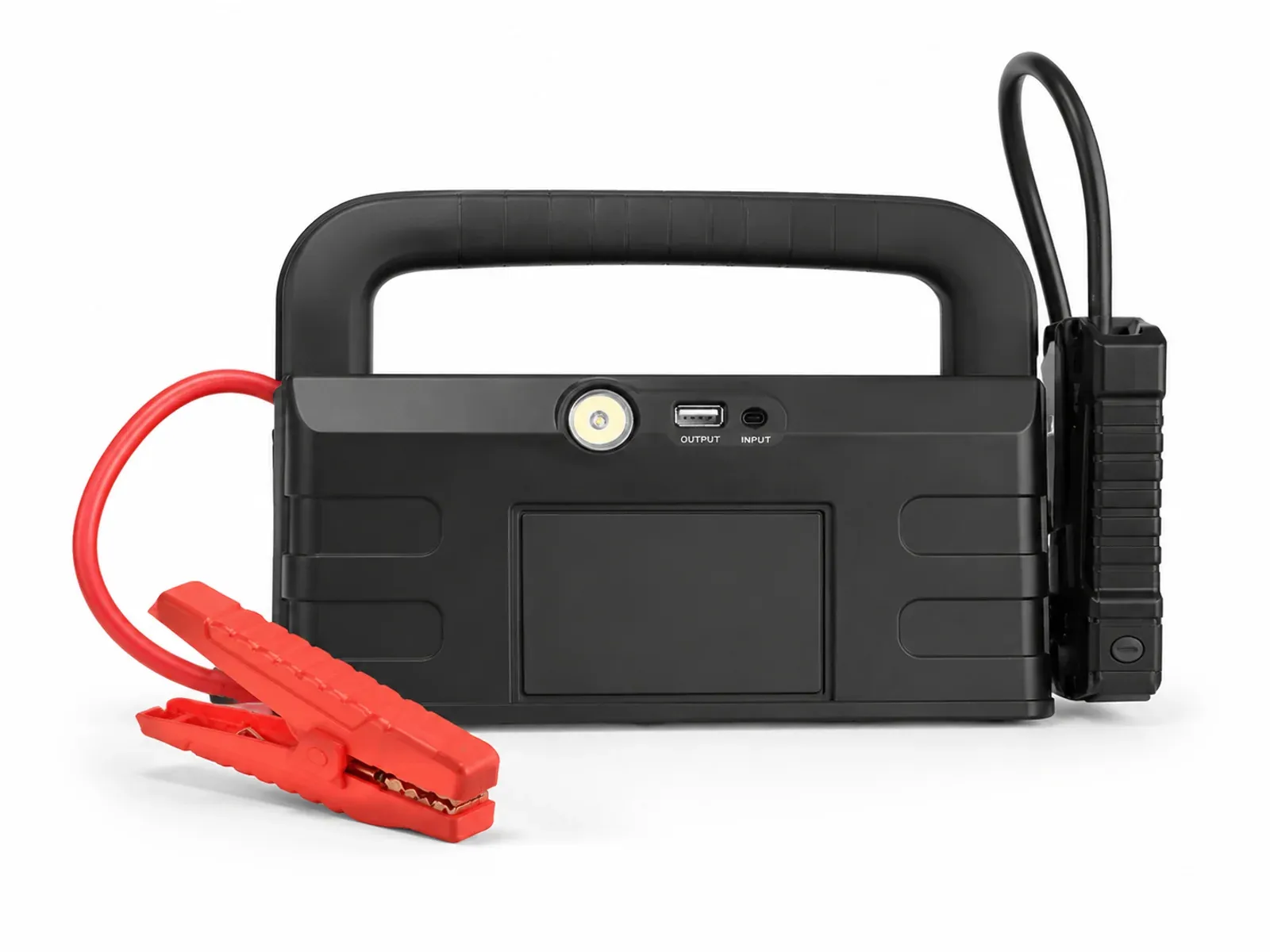

30C-60C jump starter high-rate lithium battery pack for pulse-power equipment, with black handheld enclosure, front light, USB output and input ports, and red starter clamp lead

Performance Summary

High-Rate Lithium Cell for Jump Starter & Pulse-Power Equipment

High-discharge lithium cell and pack platform for automotive jump starters, motorcycle starters, low-temperature pulse discharge, and compact high-rate OEM systems.

30C-60CPulseLow temp

Request a Quote Download Technical Datasheet & Drawing

Certification support

UN38.3MSDSExtreme discharge test planning

Browsing path: High-Performance Battery Capability Summary

Quick shortlist specs

Full specs are confirmed in the technical table

Voltage

Single cell / pack configured

Capacity

1700mAh-4000mAh examples

Chemistry

High-rate Li-ion / polymer

Energy

150-170Wh/kg examples

Max discharge

30C-60C continuous, pulse reviewed

Cycle life

Project and profile dependent

Dimensions

Cell or compact pack

Applications

Description & Applications

High-discharge lithium cell and pack platform for automotive jump starters, motorcycle starters, low-temperature pulse discharge, and compact high-rate OEM systems.

Automotive jump starterMotorcycle starterPulse-power equipmentSpecialty mobility

Representative data, confirmed during RFQ

The tables below summarize supplier brochure data for selection. Final use should confirm duty cycle, certification documents, sample status, and production availability.

Spec table index

Jump starter high-current positioning Startup cell examples Engineering validation focus

Cell positioning	High-rate startup and pulse-discharge cell platform
Polymer high-rate option	High-rate polymer cells can be reviewed for short-duration high-current jump starter projects
PACK reference	6S / 12S high-rate PACK examples are listed in the high-rate drone battery page for full model comparison
Low-temperature behavior	Low-temperature pulse startup profile can be reviewed at project stage
Discharge planning	Continuous current, pulse current, lead length, connector, and thermal rise reviewed together
Pack design	Protection PCB, balancing, enclosure, and output terminal selected by equipment platform

Jump starter high-current positioning

High-rate polymer cells are suitable for projects that need very short-duration high-current release, such as automotive jump starters and outdoor emergency power modules.

Use case	Cell platform	Discharge behavior	Engineering check
Automotive jump starter	High-rate polymer / lithium cell	Short-duration high-current output	Pulse current, cable, clamp, thermal rise, protection thresholds
Outdoor emergency power module	High-rate lithium pack	Pulse discharge and backup support	BMS, enclosure, connector, certification documents

Startup cell examples

Representative supplier brochure data. Final sample selection depends on pulse current, temperature, connector, and pack structure.

Cell model	Capacity	Continuous discharge	Energy density
S376788	1700mAh	30C-60C series	150-170Wh/kg range
S8343125TP	4000mAh	30C-60C series	150-170Wh/kg range

Engineering validation focus

Scenario	Review item	Why it matters
Automotive startup	90C / 120C extreme pulse startup test planning	Confirms short-duration current delivery and thermal tolerance
Motorcycle startup	-20°C low-temperature placement and startup review	Reduces failure risk in cold operating conditions

Download Technical Datasheet & Drawing

Jump Starter High-Rate Lithium Cell

Leave your email and project application. We will treat the datasheet request as a high-intent RFQ and follow up with drawings and matching advice.

Accessories

Capacity upsell & related products

High-current terminal

Protection PCB

Starter cable harness

Thermal insulation plan

Output clamp and cable review

25C-60C high-rate UAV LiPo battery pack series for drone and startup power projects, with 22.2V pack labels and balance connectors

25C-60CLiPoHybrid option

High-Rate Drone LiPo Battery Pack

High-discharge lithium polymer and hybrid solid-liquid pack options for agricultural UAVs, industrial drones, logistics drones, training drones, FPV aircraft, RC models, and pulse-power portable equipment.

Voltage: 3S-12S configurable
Capability: High continuous / pulse discharge
Chemistry: High-rate polymer / hybrid option

Industrial UAVTraining drone

Request Specs & Price Technical Details

Portable power station battery module for LFP and NMC OEM projects, with rugged black and red enclosure, high-current clamp leads, and compact mobile power design

LFP/NMCOEMBMS

Portable Power Battery Module

Battery module platform for portable power station OEM projects, outdoor emergency backup, mobile equipment, and compact inverter-based power systems.

Power: 300W-5000W systems
Cell platform: LiFePO4 / NMC / polymer
Integration: Module + BMS

Outdoor powerEmergency backup

Request Specs & Price Technical Details

High safetyNail testCustom

High-Safety Custom Battery Pack

Custom battery pack architecture using safer materials, structural design, nail-penetration review, and protection planning for rugged, high-reliability equipment.

Voltage: Project specific
Capability: Load profile matched
Chemistry: High-safety lithium / LiFePO4 by project

RoboticsRugged communication

Request Specs & Price Technical Details

Product FAQ

Jump Starter High-Rate Lithium Cell

Can the cell be selected for a specific cranking-current target?

Yes. The useful RFQ inputs are pulse current, pulse duration, ambient temperature, pack voltage, cable length, connector, and expected cycle target.

High-Rate Lithium Cell for Jump Starter & Pulse-Power Equipment

Description & Applications

Jump starter high-current positioning

Startup cell examples

Engineering validation focus

Over-current protection

Short-circuit protection

Temperature monitoring

Pulse-current limit review

Low-voltage cutoff
